1.1 Pilot's cockpit
1.1 Pilot's cockpit.

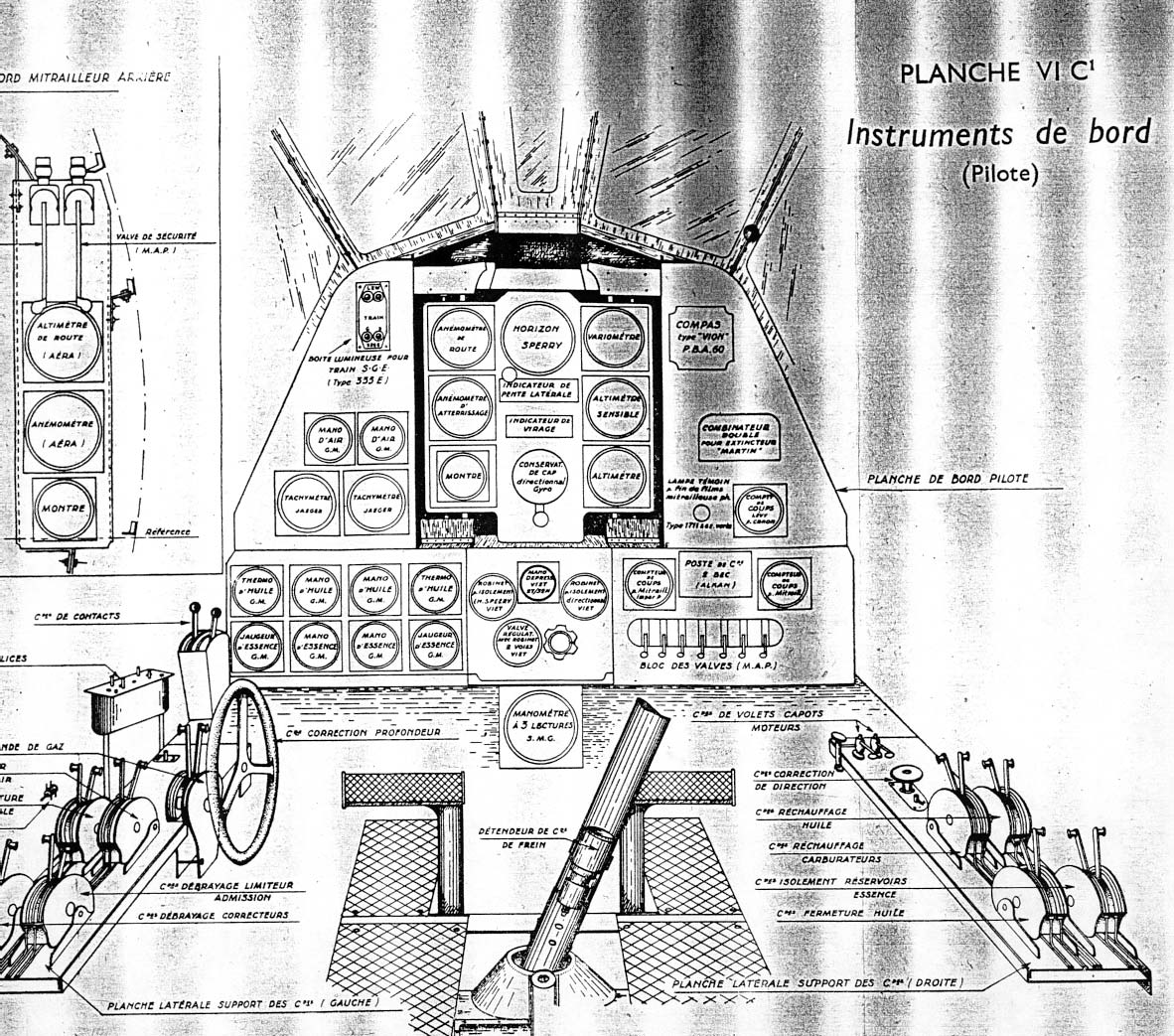

Check this picture (325 kb) to see the panel.
Middle:
(click on the pic to enlarge)
Left:

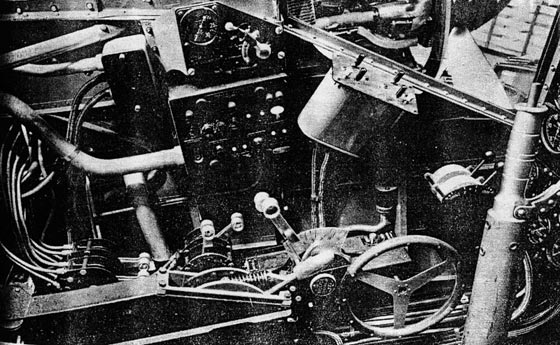

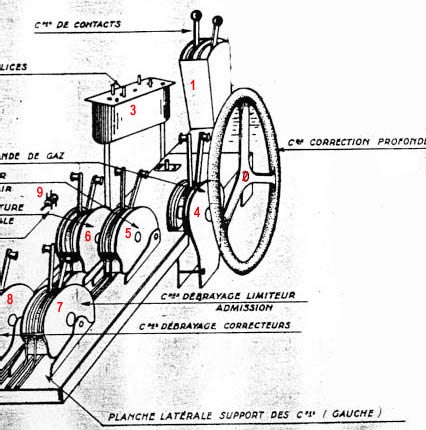

1. contact, power commands
2.elevator corrector
3.propeller commands
4.engine power commands
5.starter commands
6.general closure commands (for all the fluids?)
7.commandes de débrayage limiteur admission (admission walkout limitator commands, litterally)
8.walkout corrector commands

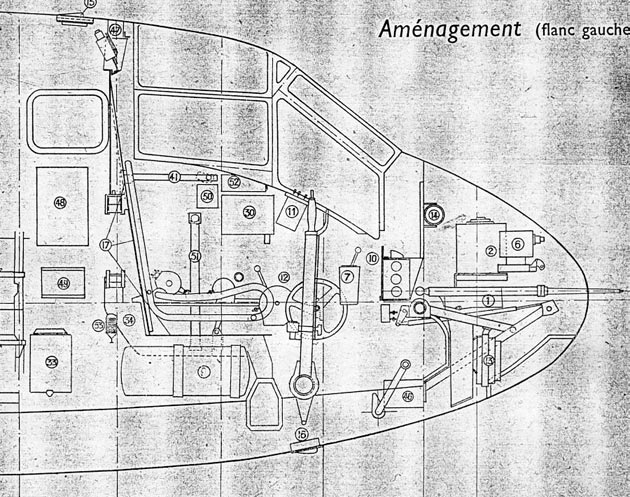

Here is a cut of the left plane, showing us well the position of equipments toward the whole cockpit:
List of instruments:
7.contact commands
10. (the vertical thing at its right): dashboard
11. propeller commands
12. lateral dashboard
30. Pilot's dashboard (?)
32. Telephone's power (french aircrafts were using telephones for the communication between crews)
51. Heating tube.
Right:
(click on the pic to enlarge it)

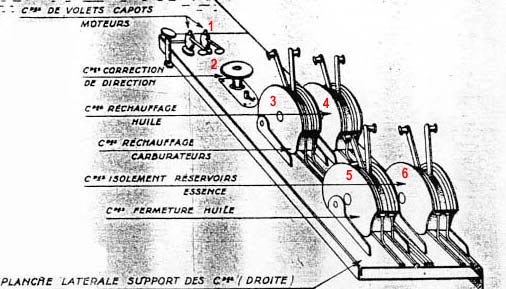

1.Engine bodies' flaps commands
2. Wheel to correct the direction
3. Carburators heating commands
4. Oil heating commands
5. Oil closure commands
6. Fuel tanks isolation commands
A close-up:
(click on the pic to enlarge it... ho God, that's borring, so now, remind that you can enlarge most of pics, ok? ;))

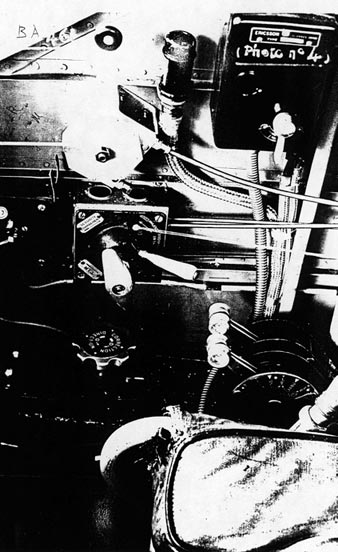

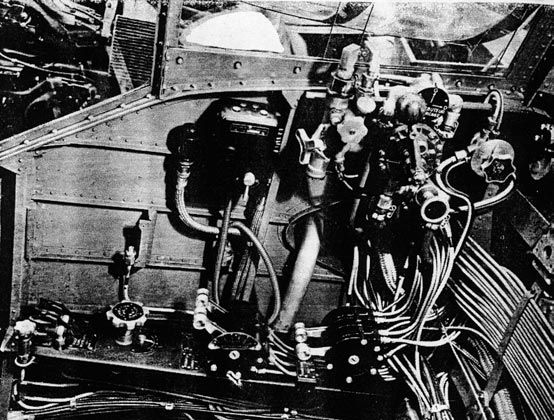

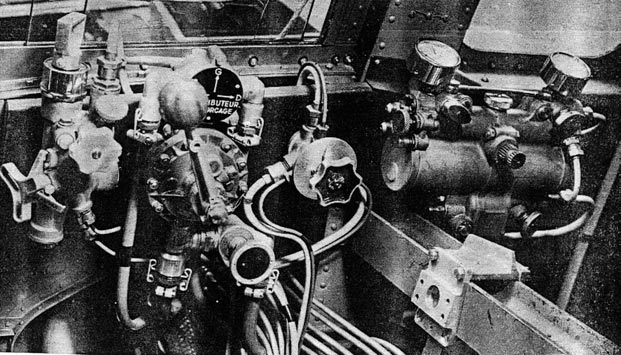

As for the strange thing right under the glass, this is the starter. Here are better pics on it:

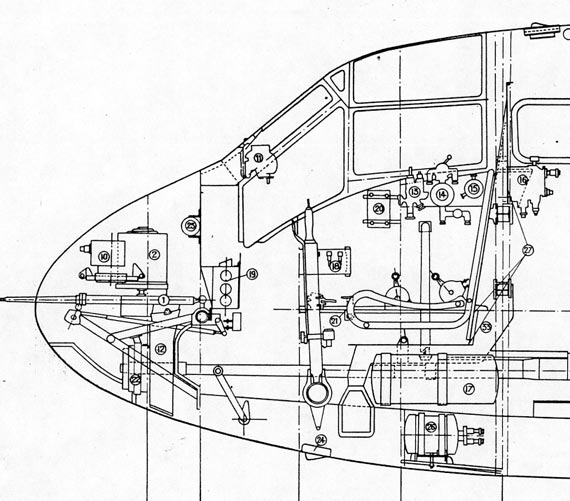

A cut showing the right side:
11. Baîlle-Lemaître 40 gunsight support
13. Injection pump
14. Onset pump
15. Starter's stopcock
16. Starter (in fact, the pilot could barely see it in flight, there had the armor plate hiding it. I'll talk about it later).
18. Emergency kit Alkan (not displayed on the photo)
19. Dashboard
20. Pilot's telephone (so that micro hanging shown on the photo was not like that in flight. It was attached to the pilot)
